MMS223
Overview

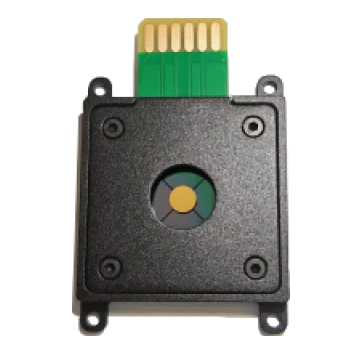

MMS223 series of fast steering mirrors, with 5mm mirror diameter, are products manufactured based on MEMS technology for low-orbit satellite, airborne, or shipboard laser communication systems. As a core component of laser communication terminals, they have advantages such as lightweight, small size, low power consumption, excellent surface profile, long lifespan without fatigue decay, serving as a replacement for the last generation of piezoelectric fast steering mirrors.
MMS223-Catalog
-
Product ID
-
lmage
-
Mirror Diameter
(mm) -
Driven Mode
-
Mirror Surface Rms
(nm) -
Mirror Surface Rms
(λ@632nm) -
Resonant Frequency
(kHz) -
Mechanical Angle
(mrad@55V) -
Open-Loop Linearity
-
Repeatability Positioning Accuracy
(μrad) -
Mirror Coating
-
Mirror Reflectance
(@1550nm) -
Package Size
(mm) -
Maximum Working Voltage
(V) -
Standard Power
(mW)
-
5
Quasi-static
≤30nm
≤1/20
0.5
X: ±10.7
Y: ±10.799.9%
≤10
Au
97.5%
35 x 35 x 6
±110
120
-
5
Quasi-static
≤30nm
≤1/20
0.7
X: ±7
Y: ±799.9%
≤10
Au
97.5%
41 x 41 x 5.5
±110
120
-
5
Quasi-static
≤30nm
≤1/20
0.55
X: ±12
Y: ±1299.9%
≤10
Au
97.5%
41 x 41 x 5.5
±110
120
