MMR121-BC

Overview

The MMR121 series, with its high resonance frequency of tens of thousands of Hertz, small size, and light weight, can be applied in VR/AR and micro-projectors.

MMR121-BC-Catalog

Product ID

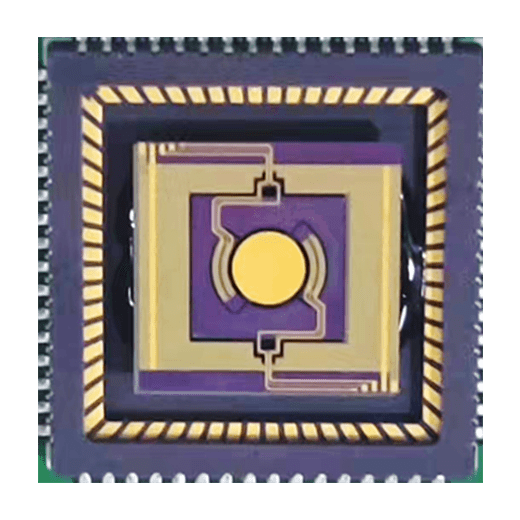

lmage

Mirror Diameter
(mm)
Driven Mode
Resonant Frequency
(kHz)
Mechanical Angle
(@55V)
Mirror Coating
Reflectance
(@visible light)
Package Size
(mm)
Maximum Working Voltage
(V)
Standard Power
(mW)

MMR121-BC

2

Resonant state

10

±10°

Al

90%

19 x 19 x 4

±110

100

MMR121-BC

MMR121-BC
